Calculations in Pivot Tables

Table of Contents

This section covers calculations in pivot tables, including setting the display of total rows/columns, field consolidation methods, and data display methods.

Setting Display of Total Rows and Columns

Use the RowGrand and ColumnGrand properties of the PivotTable object to show or hide total rows and columns.

[Excel VBA] The sample file path is Samples\ch19\Excel VBA\ Setting the Display of Total Rows and Columns.xlsm. Run the CreatePVT procedure to generate the pivot table. The RowColumnGrand procedure hides the total rows and columns.

code.vba
Sub RowColumnGrand()
    ' Omitted: get pivot table pvt
    ' ...
    pvt.RowGrand = False
    pvt.ColumnGrand = False
End Sub

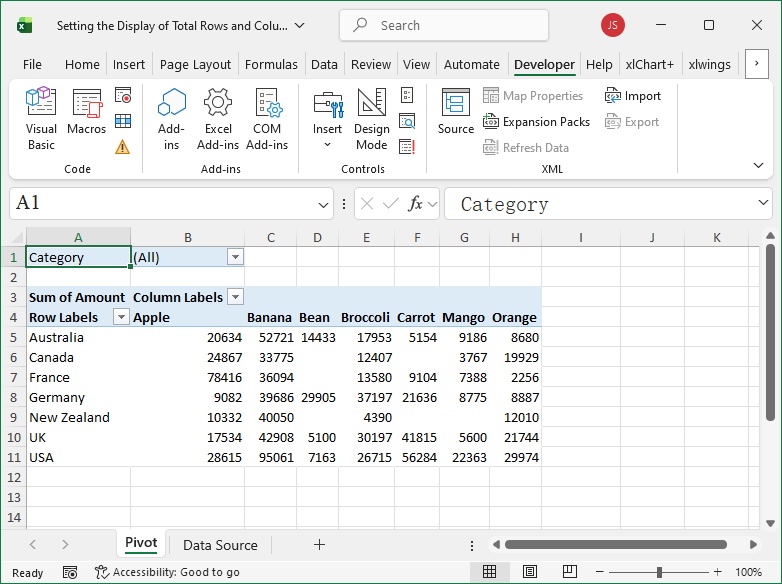

Running the procedure generates the pivot table shown in Figure 7-13.

Document Image

Figure 7-13

[Python] The Python script file path is Samples\ch19\Python\ Setting the Display of Total Rows and Columns.py.

(Omitted code for brevity; refer to the Python file.)

Set display of total rows and columns:

code.vba
pvt.RowGrand = False
pvt.ColumnGrand = False

Running the script generates the pivot table shown in Figure 7-13.

Setting Field Consolidation Method

Use the Function property of the PivotField object to set the consolidation method of a field (default is sum).

[Excel VBA] The sample file path is Samples\ch19\Excel VBA\ Setting the Summary Function for a Field.xlsm. Run the CreatePVT procedure to generate the pivot table. The SetStyle procedure specifies counting for “sum:Amount”.

code.vba
Sub SetStyle()
    ' Omitted: get pivot table pvt
    ' ...
    pvt.PivotFields("sum of Amount").Function = xlCount  ' Count consolidation
End Sub

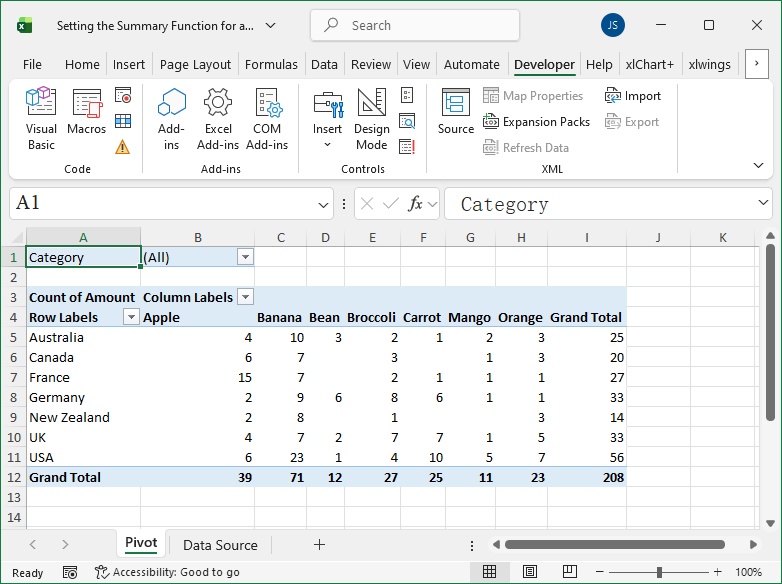

Running the procedure generates the pivot table shown in Figure 7-14.

Document Image

Figure 7-14

[Python] The Python script file path is Samples\ch19\Python\ Setting the Summary Function for a Field.py.

(Omitted code for brevity; refer to the Python file.)

Set field consolidation method:

code.vba
pvt.PivotFields('sum:Amount').Function = \
    xw.constants.ConsolidationFunction.xlCount

Running the script generates the pivot table shown in Figure 7-14.

Setting Data Display Method

Use the Calculation property of the PivotField object to set the data display method in the pivot table.

[Excel VBA] The sample file path is Samples\ch19\Excel VBA\ Setting the Data Display Format.xlsm. Run the CreatePVT procedure to generate the pivot table. The SetFieldData procedure specifies displaying “sum:Amount” as row percentage (each data in a row is shown as a percentage of the row total).

code.vba
Sub SetFieldData()
    ' Omitted: get pivot table pvt
    ' ...
    pvt.PivotFields("sum of Amount").Calculation = xlPercentOfRow
End Sub

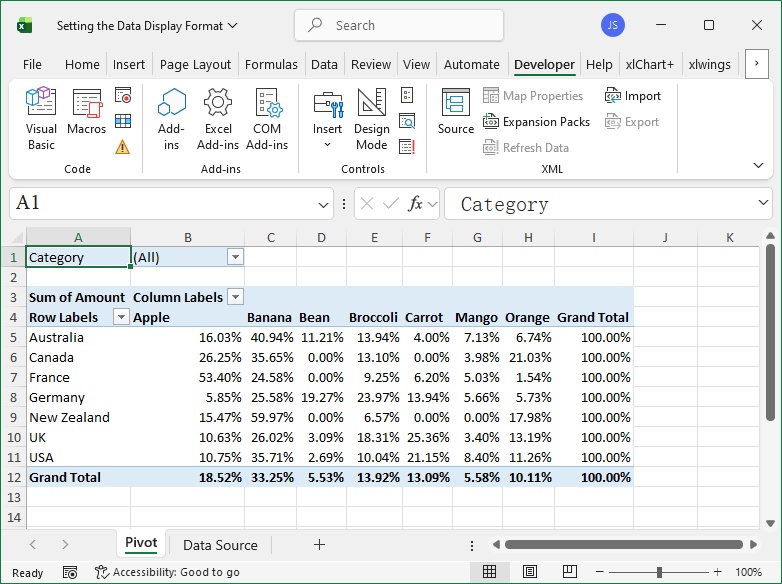

Running the procedure generates the pivot table shown in Figure 7-15.

Document Image

Figure 7-15

[Python] The Python script file path is Samples\ch19\Python\ Setting the Data Display Format.py.

(Omitted code for brevity; refer to the Python file.)

Set data display method:

code.python
pvt.PivotFields('sum:Amount').Calculation = \
    xw.constants.PivotFieldCalculation.xlPercentOfRow

Running the script generates the pivot table shown in Figure 7-15.
